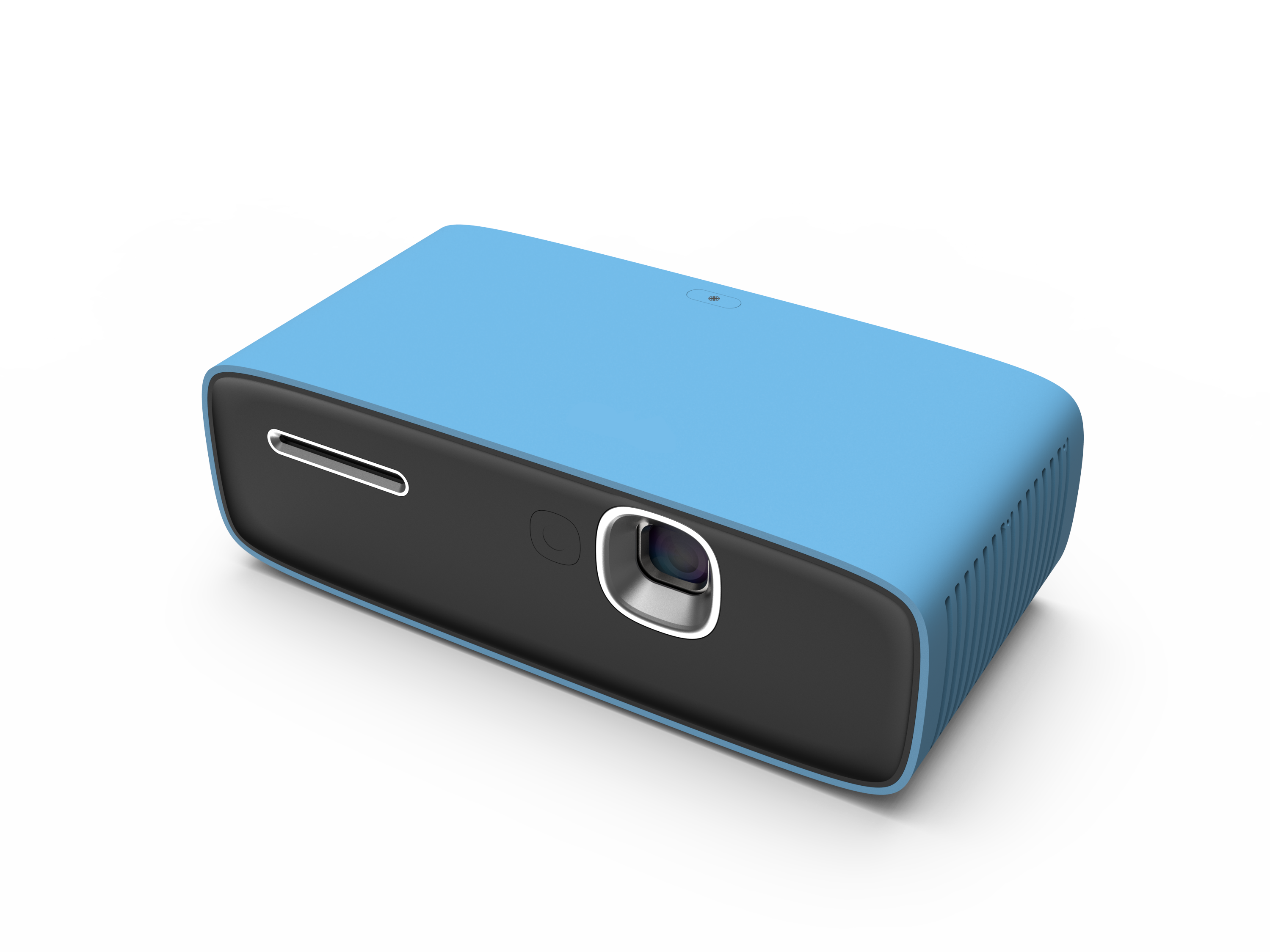

K1 Mini Pocket DLP Projector
Mini Pocket Projector
Dimensions 127*85*46mm
Weight 435g
Housing ABS+PC
Package Size 166x166x55mm
Package GW 825g
Qty 10pcs
Carton Size 365x300x190mm
GW 8.78kg
CPU Amlogic T972 Quad Core ARM Cortex-A7，1.2GHz CPU
HDMI IN TSUMV56RBUT 32-bit RSIC CPU
ROM 1G DDR3
RAM 16G Emmc
Wi-Fi BCM 43569 802.11 b/g/n/ac 2.4G/5G 2T2R （AP6269LV）
- Description
| Basic | K1 | |
    |
||
      Dimensions |
127*85*46mm | |
| Weight | 435g | |
| Housing | ABS+PC | |
|
Package |
Package Size | 166x166x55mm |
| Package GW | 825g | |
| Qty | 10pcs | |
| Carton Size | 365x300x190mm | |
| GW | 8.78kg | |
| Hardware | CPU | Amlogic T972 Quad Core ARM Cortex-A7，1.2GHz CPU |
| HDMI IN | TSUMV56RBUT 32-bit RSIC CPU | |
| ROM | 1G DDR3 | |
| RAM | 16G Emmc | |
| Wi-Fi | BCM 43569 802.11 b/g/n/ac 2.4G/5G 2T2R （AP6269LV） | |
| Bluetooth | Bluetooth 4.1 | |
| Speaker | Cavity speaker 4Ω 2W | |
| Battery | Li-polymer 3420mAh*2，7.6V Series connection | |
| Interface | Micro USB | USB HOST TYPE-A |
| power con | DC IN 12V/3A | |
| HDMI | HDMI in | |
| Key | Touch key | |
| Optical Engine | Brightness | 220 ANSI Lumens |
| Focus | Motor | |
| Projector technology | .23 DMD（DLP） | |
| Lamp | RGB LED | |
| Resolution | 854*480 | |
| Displayable colors | 90% NTSC color gamut | |
| Contrast ratio | 300:1 | |
| Throw Ratio | 1.2:1 | |
| Aspect ratio | 16:9 | |
| evenness | ＞85% | |
| Throw Size | 20~120Inch | |
| Recommend size | 60inch | |
| Image size (diagonal) | 37.8 inch（16:9）@1M；75 inch（16:9）@2M；110 inch（16:9）@3m | |
| Led Driver | DPP3430+PAD3000 | |
| Keystone correction | Software algorithm | |
| LED life | 20000h | |
| Software | OS | Android 9.0 |
| wireless transfer profile | Airplay、Miracast | |
| network share | support access internet by 3G/4G cellular networks of iphone/android | |
| Vedio party | Youtube/netflix | |
| Picture format | JPEG/BMP/GIF/PNG | |
| Audio format | MP3/WAV/OGG/APE/FLAC | |
| Vedio format | WMA/MPEG1/2/4/H.264，H.265/MOV/VC1/DIVXMKV…ect | |
| Entertainment Support | YES | |
| Bluetooth function | Support Bluetooth sound box Bluetooth | |
| Mouse Support | YES | |
